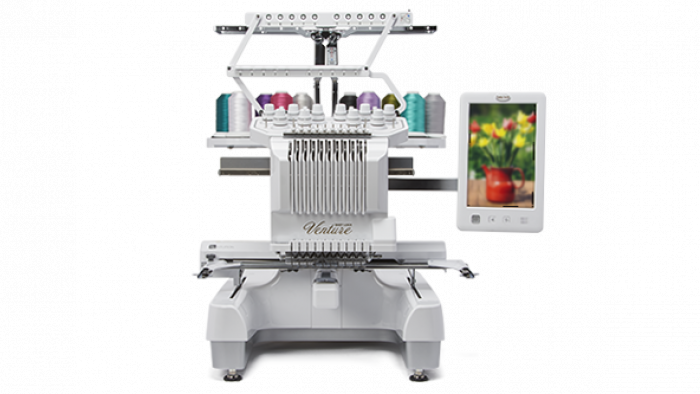

Baby Lock Venture

The Baby Lock Venture 10-needle machine allows you to take on even more designs and projects. The Venture’s free-arm design makes it easy to add embroidery to difficult-to-hoop projects, such as tote bags, t-shirts, etc. You can accomplish a multitude of projects with any design from the simplest to the most sophisticated.


The Baby Lock Venture 10 Needle Embroidery machine features include:

  • 10 Needles
  • 7-7/8″ x 14″ Embroidery Field
  • IQ Intuition™ Monitoring
  • IQ™ Designer
  • Perfect Positioning
  • 170 Built-In Designs


10.1" TruView™ IPS TFT LCD Screen in HD

The Vebnture’s high-definition, 10.1” TruView™ IPS (TFT) LED Screen brings embroidery designs to life with over 16 million vivid colors. Adjust thumbnails and magnify on-screen designs up to 200% to easily spot a design flaw before stitching. Personalize your screen saver, upload images and photos, plus use the Mpeg-4 movie/video function to spark more ideas.

NeedleCam™ Digital Camera

The NeedleCam™ Digital Camera lets you see from the needle’s point of view, so you know exactly where the needle will drop. Also, you can use the Perfect Positioning stickers included with your Valiant to place every design with extreme precision.

5 LED Lights

The 5 LED lights help illuminate your work area and also come with dimming settings to create your perfect workspace.

Edit Designs On Screen

With the Valiant’s editing features, you can combine, reposition, resize, rotate and mirror embroidery designs and watch as the changes instantly appear on the LCD screen. Alter design elements individually, or group them to easily move or edit them collectively.

3 USB Drives: 2 Type A, 1 Type B, SD Card Slot

With USB connectivity, you can easily import designs to your machine from a computer or flash drive.

Front-Loading Bobbin System

The convenient bobbin system with a front-loading, vertical hook means you can change bobbins without having to remove your embroidery hoop.

4 Hoops

The Baby Lock Valiant comes with four embroidery hoops:

7-7/8" x 14" (200mm x 360mm)
5-1/8" x 7-1/8" (130mm x 180mm)
4" x 4" (100mm x 100mm)
1-1/2" x 2-3/8" (40mm x 60mm)

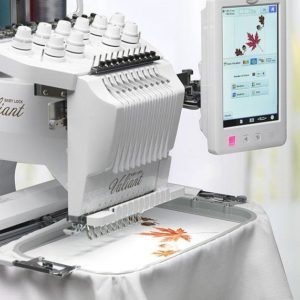

Color Visualizer

Choose from random, vivid, gradient and soft and watch as your design is transformed in an array of color combinations. Have a favorite color in mind? Pin it to the Color Visualizer, and the Valiant will be sure to use it in the next set of color suggestions.

170 Built-in Embroidery Designs

Choose from more than 170 built-in embroidery designs then rotate, merge, color sort, group and more all on screen.

1,000 Stitches Per Minute

Embroidery finishes fill faster than the blink of an eye. You’ll love the estimated embroidery time display stitch count, embroidery progress bar and stitch simulator.

On-Screen Text Editing

With Multi-line text, character spacing, grouping and character insert capabilities designing with the 41 included fonts has never been smoother.


Semi-Industrial Features
  • 10 needles – 1 position for each needle
  • Maximum embroidery speed -1,000 stitches per minute
  • Maximum embroidery fill stitching speed -1,000 stitches per minute
  • Embroiders up to 7-7/8″ x 14″ (200mm x 360mm) embroidery field or optional 14″ x 14″ (360mm x 360mm) frame using Palette Software
  • LCD Maximum reading capacity: 500,000 stitches, or 127 color changes
Technology Features
  • Color LCD Touch Screen IPS (TFT)
  • Shows 16,777,216 colors
  • Measures 10.1″ diagonally
  • NeedleCamTM Digital Camera for perfect embroidery positioning
  • NeedleCamTM Digital Camera for embroidery and sewing positioning with 5X faster scanning, 3X higher resolution
  • Precise Touch PositioningTM using NeedleCam
  • Live Camera Positioning
  • Color Touch Screen shows:
  • Design placement using drag and drop capabilities
  • Estimated embroidery time display and stitch count
  • Embroidery progress bar
  • Needle advancement (1, 10, 100 or 1000 stitch increments)
  • Measurements displayed in inches or metrics 200% Design magnification on screen
  • Color separation
  • Thread color indicator
  • On-screen hoop size indicator shows standard and optional hoops
  • Stitch simulator
  • Thread warning indicator
  • 300 color names
  • Screen saver customization
  • Customizable mouse pointer
  • 2x faster CPU processing speed
  • Mpeg-4 movie/video play function
  • Exclusive Memory Storage for video
  • Software/Connectivity – 3USB drives
  • 2 (Type A) drives, version 2.0 connects with flash drives,
  • CD-Rom drives, mouse, and hub
  • 1 (Type B) USB direct connect to a PC
  • 1 SD card connection capability
  • Linking capabilities allow up to 4 machines to connect to
  • Palette 9 or later software through a powered hub
  • Reads multiple formats (PES, PEC, DST, PHC)
  • Upgradeable through USB connection Needle Beam for precise alignment
Customizing Features
  • Built-in embroidery designs
  • 120 Designs
  • 41 Fonts including
  • Baby Lock exclusive script (70 characters)
  • Large floral alphabet (64 characters)
  • Large Block alphabet (61 characters)
  • Greek letters (24 characters)
  • Block alphabet (100 characters)
  • 3 Monogram fonts ( 156 characters) and frame designs (15)
  • 140 Frame combinations
  • Combine embroidery designs on screen
  • Character/text array function
  • Character spacing
  • Multi-line text
  • Character insert and group edit capabilities
  • 0.1°, 1°, 10°, and 90° Pattern rotation
  • Enhanced design enlargement (up to 200%) and reduction (down to 60%) capabilities
  • Needle forward and reverse position placement (1, 10, 100 or 1000 stitch increments)
  • Intuitive forward and reverse placement by touchable progress bar and direct number input
  • Design duplication (up to 20 times in both directions)
  • Enhanced design grouping /ungrouping allows designs or letters to move as a group
  • Color Visualizer with pin-able color selections
  • Direct Spool Selection to change color selections within designs
  • Continuous border capabilities
  • Automatic appliqué
  • Automatic basting
  • Mirror imaging
  • Enhanced color sorting
  • Monochrome option for embroidery designs
  • Short stitch delete
  • Instant needle edge placement with 9 starting and 9 ending positions
  • Thread color display in 6 options
  • Custom color displays in 3 options:
  • Original Palette, Custom Palette 1, Custom Palette 2
  • 4 Included embroidery hoops:
  • 7-7/8″ x 14″ (200mm x 360mm)
  • 5-1/8″ x 7-1/8″ (130mm x 180mm)
  • 4″ x 4″ (100mm x 100mm)
  • 1-1/2″ x 2-3/8″ (40mm x 60mm)
  • Hoop sensor advises hoop size for design chosen
  • Hoop display shows hoop options onscreen based on frame holder chosen
  • Stitch simulator previews design on screen
  • On-screen count and running time system
IQ Designer – Free Update 11/2016
  • Image scanning frame with magnets
  • On-screen drawing capabilities
  • Automatically create an embroidery pattern from a JPEG image
  • 90 Preloaded open, closed and region shapes
  • Able to select different line colors and fill colors
  • 6 Different stitch patterns: running, bean, satin, no outline, chain stitch, and candlewicking
  • 13 Different fill patterns: regular fill, no fill, stipple, and 10 decorative pattern fills
  • Duplicate and paste editing preloaded shapes
  • Adjust line, fill and stippling width, length and density properties
  • Undersewing options
  • Outline stamp shape creation for Trapunto techniques
  • 2 scanning modes
  • Fine- For illustrations
  • Standard -For line drawings
Convenience Features
  • 5 LED lights with dimming settings to illuminate work area
  • LED spool stand lighting aids in thread placement and lights for thread spool warning
  • Built-in memory (10MB) stores embroidery designs to the machine’s memory
  • Bobbin system: front loading, vertical rotary hook
  • Push button, automatic needle threaders
  • Upper thread breakage sensors
  • Manual tension controls
  • Automatic thread trimmer (upper and lower)
  • Needle bar/frame move key extends the hoop for easy access to the design while still attached to the machine
  • Oiling Key automatically places the race in the correct position for oiling
  • Start/Stop button with lock feature
  • On-screen speed control
  • Uses pre-wound bobbins
  • Choose units of measure (in. or mm.)
  • Built-in stylus holder
  • Support Features
  • Built-in operation guide with videos
  • Built-in help messages
  • Auto save feature – automatically saves last design when power is turned off or a power failure occurs
  • Shipping weight (130 lbs. or 59 kg.)
  • Machine weight (94 lbs. or 42.5 kg)
  • Warranty (25 years product casting, 5 years circuit boards,
  • 5 years electrical, 2 year parts, 1 year labor)
  • Ask your Baby Lock Retailer about The Optional Love of
  • Sewing Membership (BMV10-LOSM)
